Scope Driving Light (9", Combo Beam)
SKU: IDL0901C
1 LUX RATING (PAIR)
RAW LUMENS (PAIR)
LUMEN EFFICIENCY
$349.00
$349.00
Required Products
There are required products for this item. .
COME TO THE BRIGHT SIDE
Discover Scope Driving Lights
The Scope 9″ driving light boasts a whopping 1Lux @ 1.77km when operated as a pair of spotlights, while a pair of Combos is not far behind at 1.4km!
Amazing driving light performance, with lower power draw in a sleek package is achieved with upgrades in reflector technology. Get out of the dark ages and into a whole new world with Ironman 4×4 Scope 9″ driving lights.
CLASS LEADING LIGHT OUTPUT
up to 1Lux @ 1.77kmHOODED REFLECTOR TECHNOLOGY
more efficient and effective light outputDIMMABILITY
offers great control and usability
HOODED REFLECTORS
The Scope 9" driving light features Hooded Reflectors with 6x 12W high-power LEDs, improving light efficiency by directing the LED shine into the reflectors.
Available in Spot and Combo versions, the Combo spreads light wider, while the Spot focuses on long-range visibility.
The combination of high-power LEDs and efficient reflectors reduces power draw, heat, and the number of LEDs needed, resulting in a more durable, high-performance driving light.
DEEP DISH REFLECTOR CUPS
Our Deep Dish Reflector Cups are up to 100% deeper than traditional cups, boosting light efficiency. The middle row of LEDs delivers optimal light directly in your sight line for a better driving experience.
The Scope 9" driving lights feature 4 high-powered LEDs that are captured and projected by these reflectors.
DIMMABILITY
The 9" Scope driving light can reduce power by 80% at the touch of a button.
This helps minimise distractions from reflective road signs when approaching towns, while still offering better performance than stock high-beams for a smoother driving experience.
DURABILITY IS SUITABILITY
- IP68 protection against water and dust ingress
- Case Breather – allows hot air to escape to eliminate condensation and ensure a water-tight seal is maintained
- Case mounted LEDs – allow for fast heat dissipation, keeping the lights cool and LEDs bright
- Virtually indestructible polycarbonate lens
- Rust-preventing facia with no front facing screws to capture and hold moisture
- DuPont powder-coated cast aluminium housing with stainless steel mount system
- Centre and side pinning bolts for ultimate rigidity
- 3-year warranty

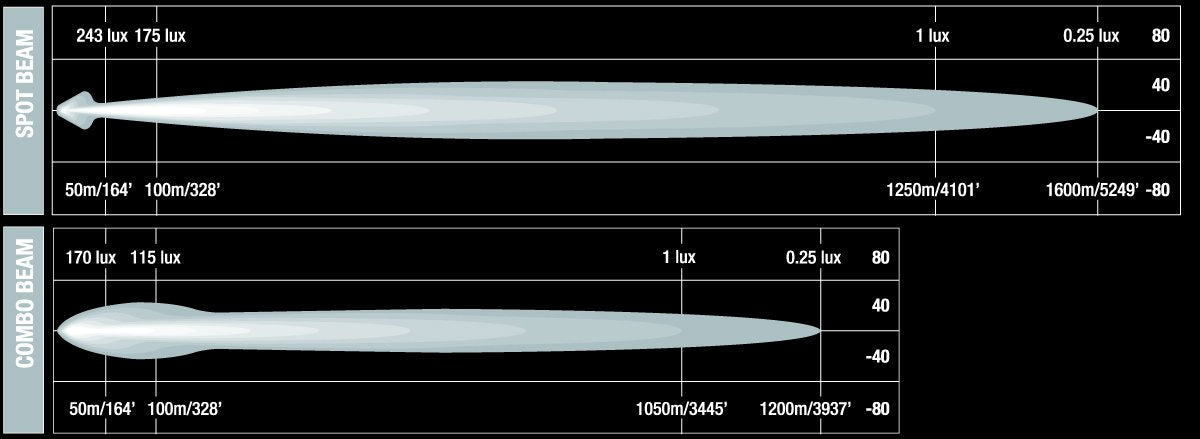

LUX GRAPH
Specifications
LUMENS
Raw Lumens:
9" SPOT: Single: 16,000 | Pair: 32,000
9" COMBO: Single: 16,000 | Pair: 32,000
Effective Lumens:
9" SPOT: Single: 10,800 | Pair: 21,600
9" COMBO: Single: 10,800 | Pair: 21,600
Lumen Efficiency:
9" SPOT: 67.50%
9" COMBO: 67.50%
LEDS
LEDS:
9" SPOT: LUMINUS
9" COMBO: LUMINUS
LED Configuration:
9" SPOT: 6x 12W & 4x 10W high output LEDs
9" COMBO: 6x 12W & 4x 10W high output LEDs
DIMMABILITY
9" SPOT: YES
9" COMBO: YES
IP RATING
9" SPOT: IP68 Water & Dust Ingress
9" COMBO: IP68 Water & Dust Ingress
LUX
1 LUX Rating:
9" SPOT: Single: 1,250m | Pair: 1,768m
9" COMBO: Single: 1,050m | Pair: 1,414
LUX @10M:
9" SPOT: 7,400
9" COMBO: 4,728
MAX POWER
9" SPOT: 113.5W
9" COMBO: 113.5W
CURRENT DRAW
9" SPOT: ~12.6 amps @ 12V
9" COMBO: ~12.6 amps @ 12V
KELVIN (COLOUR)
9" SPOT: 5,700K
9" COMBO: 5,700K
DIMENSIONS
Dimensions (Light):
9" SPOT: 227mm (L) x 227mm (W) x 100mm (D)
9" COMBO: 227mm (L) x 227mm (W) x 100mm (D)
Height (Including mount)
9" SPOT: 245mm (9.6")
9" COMBO: 245mm (9.6")
