Scope Driving Light (7", Spot Beam)
SKU: IDL0701S
$300.00
$300.00
Required Products
There are required products for this item. .
Product Information
Overview
Smaller light, great light power.
Whether you prefer the aesthetics of a smaller light, have some restrictions in size or just don’t need full daylight at night time, the 7″ Scope driving light is no compromise.
Its unique look is a ‘tip of the hat’ to adopting new technologies for optimal performance.
Class- Leading Efficiency
88.9% lumen efficiency
Tir Technology
Optimal light output in Spot and Combo
Hooded Reflectors
More effective light output
SCOPE 7″ SPOT BEAM
1 LUX RATING (PAIR): 990m
RAW LUMENS (PAIR): 16,200
LUMEN EFFICIENCY: 89.0%
Hooded Reflectors

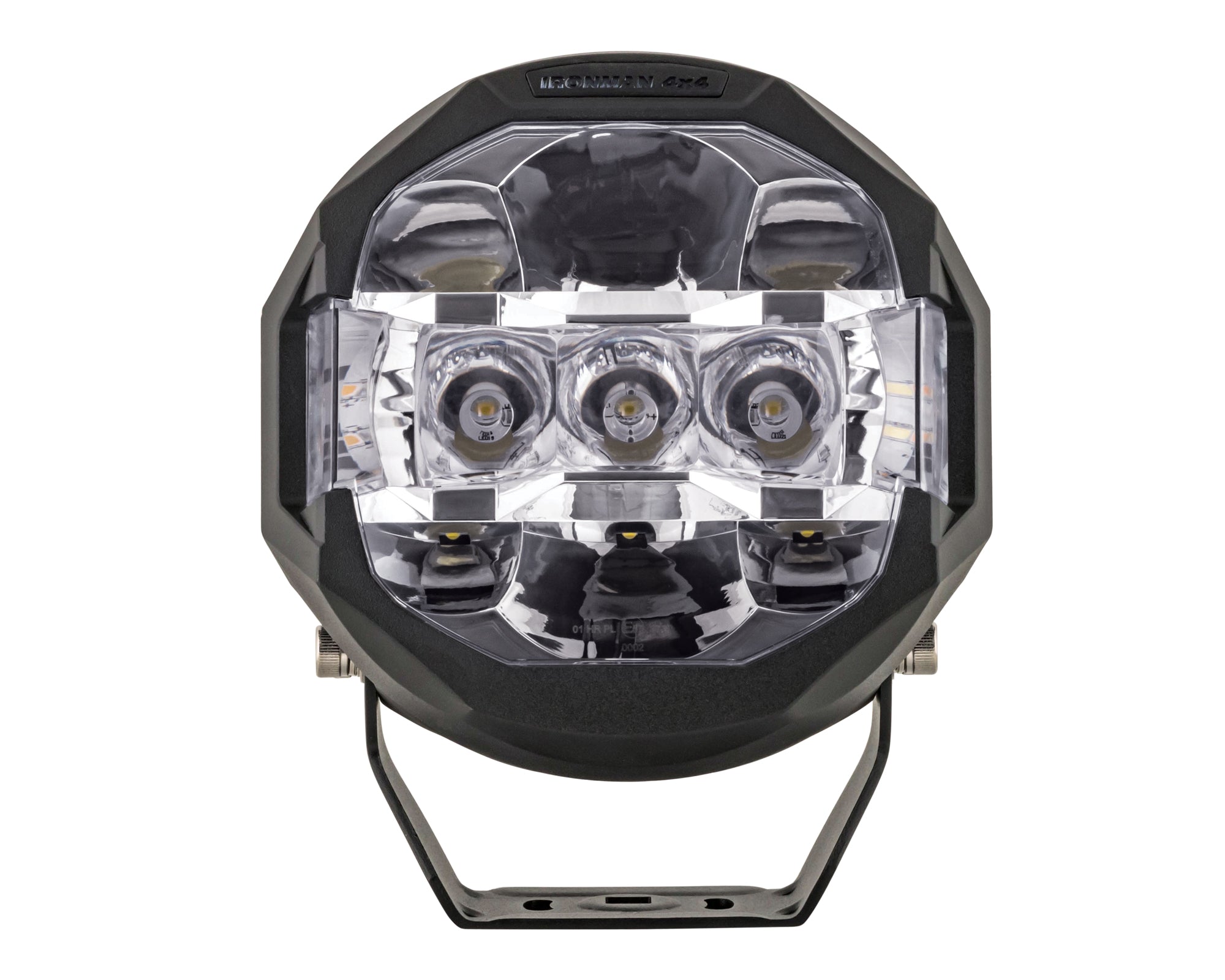

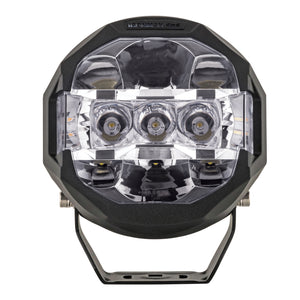

Taking a leaf from its ‘big brother’s’ book, the 7” Scope driving light features the same Hooded Reflector technology, these reflectors are positioned along the top and bottom of the light harnessing 6 x 9W high power LEDs.
Total Internal Reflectors
The Ironman 4×4 7” Scope driving light does away with traditional reflector cups, and instead adopts a Total Internal Reflection (TIR) optic lens.
While all other types of reflector experience some level of ‘spill’ and loss of lighting efficiency, the TIR lenses which run through the centre of these driving lights capture 100% of the LEDs output and uniquely projects it as required for the ultimate driving experience.
The lens in our Spot model ensures light is captured and projected directly in front of the vehicle for optimal vision straight ahead, while the Combo model utilises a row of TIR discs that bounce the light horizontally for a broad spread of light – great for bush driving!
Side Shooters & Position Lights
To the sides, a pair of diffused optic lenses take the light from 4 LEDs and provide great vision to the immediate peripherals to the front of the vehicle.
Additionally, when the driving lights are not switched on, the side shooters can be activated as position lights coupled with the nicely illuminated branding at the top.
Heat Dissipation & Colour
The 7” Scope driving lights, run a minimal 9-12 high performance LEDs, which are directly mounted to the cast housing. Utilising the hugely efficient reflectors and less LEDs already generates less heat – coupled with clever mounting to the cast housing ensures maximum performance and brightness over long periods.
Scope 7” driving lights run a 5700 Kelvin colour rating – a colour most closely matched to that of daylight is easier on the eyes!
Durability is Suitability
- IP68 protection against water and dust ingress
- Case Breather – allows hot air to escape to eliminate condensation and ensure a water-tight seal is maintained
- Case mounted LEDs – allow for fast heat dissipation, keeping the lights cool and LEDs bright
- Virtually indestructible polycarbonate lens
- Rust-preventing facia with no front facing screws to capture and hold moisture
- DuPont powder-coated cast aluminium housing with stainless steel mount system
- Centre and side pinning bolts for ultimate rigidity
- 3-year warranty
Specifications:
7” SPOT
Raw Lumens: Single: 8,100 | Pair: 16,200
Effective Lumens: Single: 7,200 | Pair: 14,400
Lumen Efficiency: 89%
LEDS: OSRAM
LED Configuration: 9 x 9W high output LEDs
Dimmability: No
IP Rating: IP68 Water & Dust Ingress
1 LUX Rating: Single: 700m | Pair: 990m
LUX @ 10M: 1,957
Max Power: 82.5W
Current Draw: ~8.4 amps @ 12V
Kelvin (Colour): 5,700K
Dimensions (Light): 178m(l) x 178mm(w) x98mm(d)
Height (including mount): 206mm (8.1”)
Spot vs. Combo Beam Patterns - What they’re best used for?
A Spot and Combo version of the hooded reflector is available - the Combo driving light pushes more light out in a greater spread, while the Spot driving light puts all its effort into getting the light as far down the road as possible.
Spot Beam: This beam type is ideal for long-distance vision on remote highways and long straight, outback roads. It starts narrow and widens out at a longer distance.
Combo Beam: this beam type is a mix of a flood and spot beam, useful for a wider field of view at shorter distances on winding bush and alpine roads.
This beam type starts wide at shorter distances and then tapers in.
