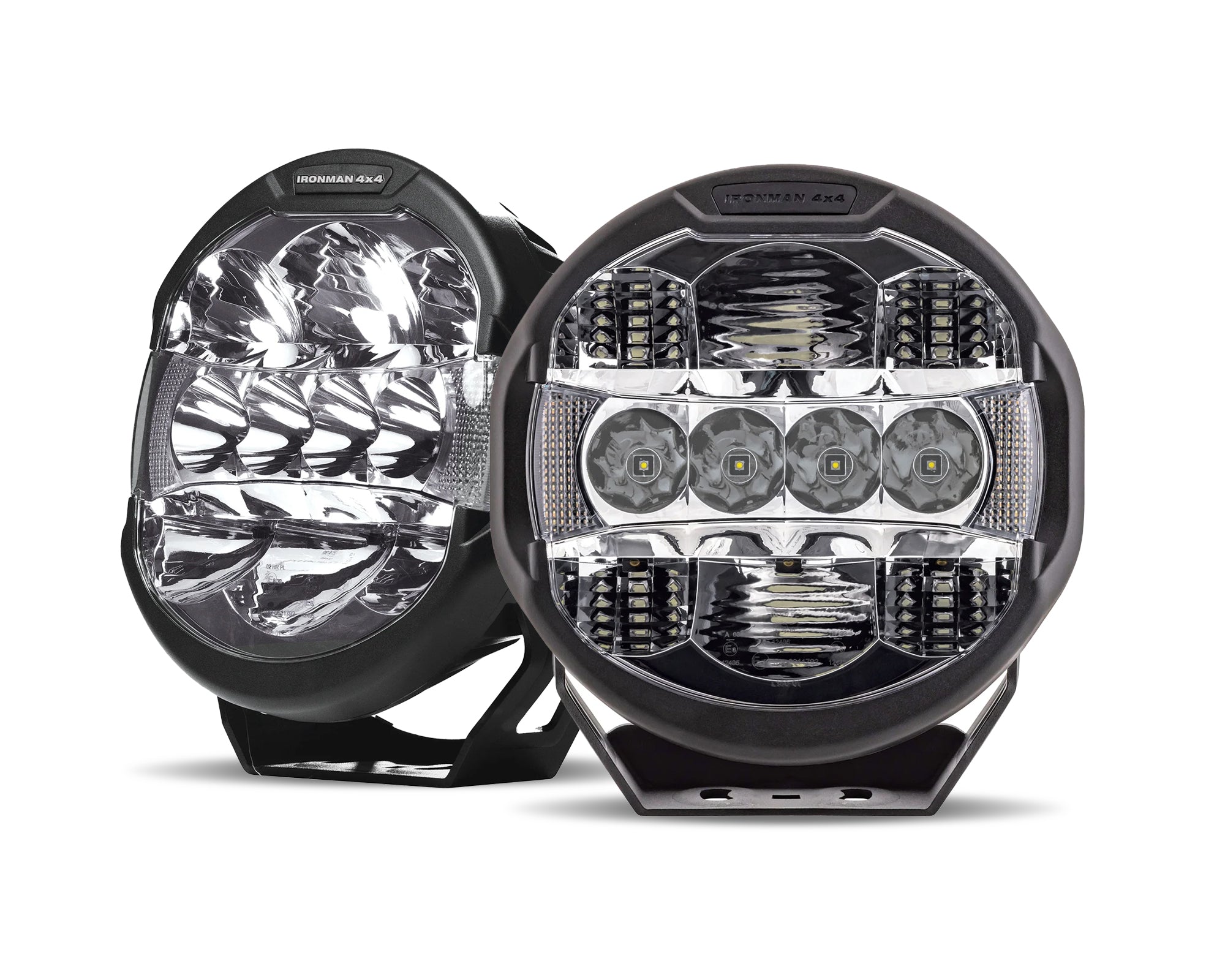

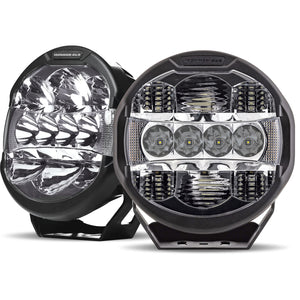

Scope Driving Light Kit- 9" Combo (Pair)
SKU: IDL0901CPROMO
$799.00
$799.00
Required Products
There are required products for this item. .
Product Information
Overview
Kit Includes 2 Combos + Wiring Harness
The Scope 9″ driving light boasts a whopping 1Lux @ 1.77km when operated as a pair of spotlights, while a pair of Combos is not far behind at 1.4km!
Amazing driving light performance, with lower power draw in a sleek package is achieved with upgrades in reflector technology. Get out of the dark ages and into a whole new world with Ironman 4×4 Scope 9″ driving lights.
Features:
1 LUX RATING (PAIR): 1414m
RAW LUMENS (PAIR): 21,600
LUMEN EFFICIENCY: 67.5%
Hooded Reflectors
The true brilliance in the Scope 9″ driving light is the inclusion of the Hooded Reflectors which are positioned along the top and bottom of the light harnessing 6x 12W high power LEDs.
Hooded reflectors are hugely more effective and efficient, as the LED shines directly into them unlike a traditional reflector cup where huge amounts of light is lost.
Deep Dish Reflector Cups
Ironman 4×4, alongside most driving light manufacturers in the market, has been utilising traditional reflector cup technology for many years. Unfortunately, many driving lights with small and shallow reflector cups can be largely inefficient.
Dimmability
The 9″ Scope driving light can be dialled down at the touch of a button, cutting power by 80%.
Side Shooters & Position Lights
To the sides, a pair of diffused optic lenses take the light from 8 LEDs and provide great vision to the immediate peripherals to the front of the vehicle.
Specifications:
9” COMBO
Raw Lumens: Single: 16,000 | Pair: 32,000
Effective Lumens: Single: 10,800 | Pair: 21,600
Lumen Efficiency: 67.50%
LEDS: LUMINUS
LED Configuration: 6x 12W & 4x 10W high output LEDs
Dimmability: YES
IP Rating: IP68 Water & Dust Ingress
1 LUX Rating: Single: 1,050m | Pair: 1,414m
LUX @ 10M: 4,728
Max Power: 113.5w
Current Draw: ~12.6 amps @ 12V
Kelvin (Colour): 5,700K
Dimensions (Light): 227m(l) x 227mm(w) x100mm(d)
Height (including mount): 245mm (9.6″)
Spot vs. Combo Beam Patterns - What they’re best used for?
A Spot and Combo version of the hooded reflector is available - the Combo driving light pushes more light out in a greater spread, while the Spot driving light puts all its effort into getting the light as far down the road as possible.
Spot Beam: This beam type is ideal for long-distance vision on remote highways and long straight, outback roads. It starts narrow and widens out at a longer distance.
Combo Beam: this beam type is a mix of a flood and spot beam, useful for a wider field of view at shorter distances on winding bush and alpine roads.
This beam type starts wide at shorter distances and then tapers in.
